| Industrial Zone of Tangshi, Gaobu town, DongGuan City GuangDong Province,China | zhmach@zehuimach.com |

|
| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | ZHMACH |
| Certification: | CE |
| Model Number: | ZHF-2017 |
| Minimum Order Quantity: | one set |
|---|---|
| Price: | inquiry |
| Packaging Details: | foam machine Automatic continously foam making machine nude packing together with some paper and plastic film and foam sheet some small spare parts in wooden box one standard machine need 1*20GP 2*40HQ |
| Delivery Time: | 45days after receive downpayment |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | two sets per month |
| Product Type: | Automatic Continously Foam Making Machine | Dimension(L*W*H): | L35m*W4m*H3m |
|---|---|---|---|
| Voltage: | 3PAHSE 380V | Machine Pump: | U.S VIKING PUMP/ JAPANESE |
| Flow Meter: | Glass Flow Meter | RS Pulling System: | R.S.pulling System With The Plastic Film |
| Fall Plate: | 7 Section Automatic Adjustale | Raw Material: | Polyurethane |
| Machine Control Way: | Automatic PLC And Invertor Control | Block Cutter: | Blade & Saw Tooth Double Knife Type |
| Highlight: | polyurethane foaming machine,polyurethane foam equipment,full auto polyurethane foam equipment |
||

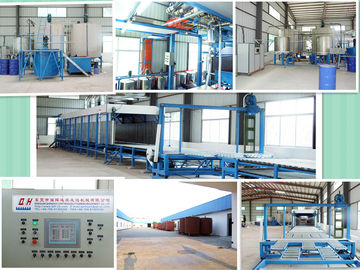

Full Automatic Polyurethane Foam Machine , Foam Mattress Making Machine
Product Description
Full-automatic Continuouse Polyurethane Foam Making Machine is the automatic horizontal continously foaming machine that make the furniture foam like sofa and mattress. The standard machine was together with 13 kinds of raw material.
For the process of foaming:
Loading all the raw materials inside the material tank with the loading system--control the temperature of the raw material inside the tank with the chiller--check the flow of all the raw materials before foaming--make some small sample test before foaming (make sure the flow and everthing is correct)--Put the karft paper and the plastic film-- foaming process
Main specification
| Oven Length | 18m |
| Foam Height | 1.0-1.25m |
| Foam Width | 1.0-2.25m |
| foam desity | 8-200kg/m³ |
| total power | 130KW |
| inner coveyer length | 18m |
| side board adjustable width | 0.98-2.3m |
| conveyer belt speed | 0-8m/min |
| fall plate | seven section adjustable |
| total output | 100-300kg/min |
| machine dimension | L35× W4.2 ×H3.2m |
Main technique specification:
| Dimension | Total length 35m×Total width 4m×Total Height 3m |
| Foaming material Group | 13 groups, man-machine interface, both manual and automatically computer control |
| Foaming width | 980mm～2250mm |
| Foaming height | Max 1200mm |
| Foaming density | 8Kg/m³～100kg/m³ |
| Foaming speed | 2000r/min～7000r/min |
| Max total output | 300kg/min |
| Material spraying way | ① The way of down sprayer head (upper, down, front, back can be adjusted) ② the way of trough overflow pipe. |
| Controlling way of foaming |
①PLC controlling, can continuously foaming two different formulas in one time ②All inverter controlling foaming and work in phase with the production line ③Oven declining board height and width can be adjusted by control box. ④Oven side links width can be adjusted by control box |
| Mixing –head motor |
37kw |
|
Total power |
About 90kw |
Material pot types: (The work pressure in the pot is normal pressure)
| Type | Use | Specification | Qty |
| Big material tank | PPG | 5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system | 1 |
| Big material tank | POP | 5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system |
1
|
| Big material tank | CaCo3 | 5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system | 1 |
| Big material tank | TDI | 5m³/δ5mm A3 steel plate, with temperature controlling, stirrer, filter system |
1
|
| Big material tank | Flame retardant | 2m³/δ3m stainless steel, with filter system | 1 |
| Big material tank | MC | 2m³/δ2mm stainless steel, with filter system | 1 |
| Small material tank | Si | 180L/δ1mm stainless steel | 1 |
| Small material tank | A-33 | 180L/δ1mm stainless steel, with filter system | 1 |
| Small material tank | T9 | 180L/δ1mm stainless steel, with filter system | 1 |
| Small material tank | H2O | 180L/δ1mm stainless steel | 1 |
| Small material tank | Color | 180L/δ1mm stainless | 1 |
| Small material tank | Anti-yellow | 180L/δ1mm stainless steel | 1 |
| Small material tank | Black | 180L/δ1mm stainless steel | 1 |
| Floor powder mixing tank | PPG, POP, Powder | 1.5m³/δ3mmA3 steel plate, with filter system | 1 |
| Filter tank | POP, Powder | 1.5m³/δ4mmA3 steel plate | 1 |
FAQ:
Q: How many days for the install and testing of the machine?
A: After all the machine in your factory we will send 1-2 engineer help to install the machine you must send someone to help about 30 days installation will finished. After that one electrician and one foaming engineer will come to connecting the cable and run the machine in 15days. Total 45days the machine can be running.
Q: For the cost of the engineer how much I need to pay?
A: You need to pay USD40 one day for one engineer and also need to pay for the visa fee turn-round ticket fee and food hotel.
Q:During the foaming if we have some problems abt the foam and the machine how can we do ?
A: You can just call our after sale manager explain for the situation or send some picture we will help to handle within 24hours.

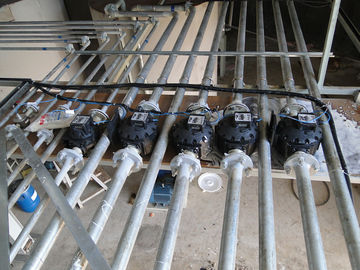

The main part of the machine
Contact Person: Wang
Tel: 0086-15817646348
Fax: 86-0769-88875397
